Onchain Architecture - Overview (EVM)

CCIP's onchain architecture includes key smart contracts that receive and process cross-chain messages on the source and destination chains. A sender of a cross-chain message can be either a smart contract or an externally owned account (EOA).

The interface for senders is the Router contract, which interacts with other internal CCIP contracts as described in the sections below. When the source chain CCIP contracts successfully process the cross-chain request, a unique message ID is returned to the sender. The offchain components listening to the events on the source chain process the message and submit it to the destination chain, where further verification and execution happen. The different components are described below.

Key Components

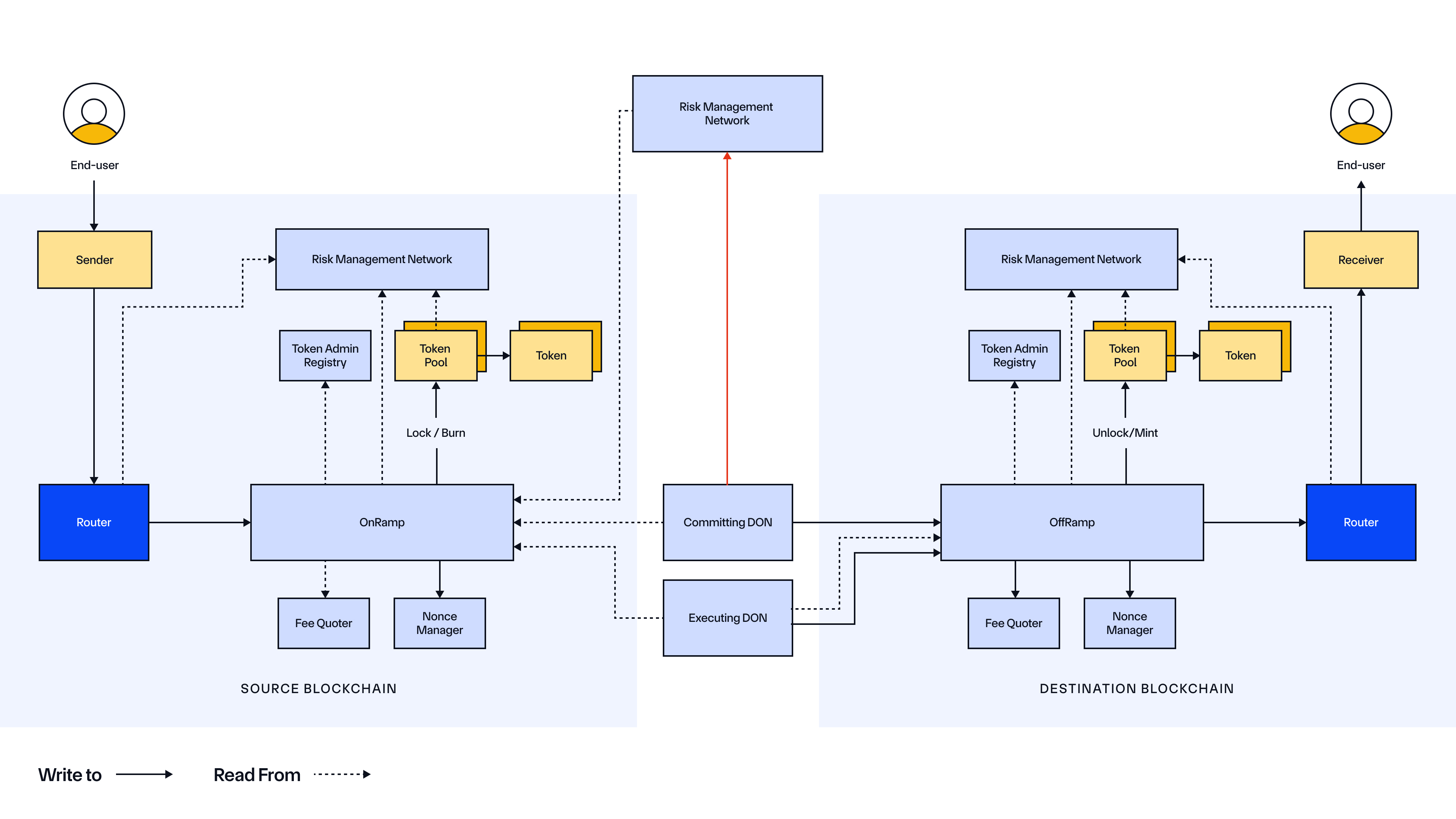

The following diagram illustrates the key onchain components:

Typical Lifecycle of a Message

Source Blockchain

1. Preparation

   • The Sender prepares a CCIP Message for a destination blockchain of choice. A CCIP Message includes the following information:
     • Receiver (EOA or smart contract)
     • Data payload
     • Tokens and amounts (if applicable)
     • Fee token
     • Extra Arguments (e.g., gas limit to use when calling the receiver on the destination chain)
   • The Sender calls Router.getFee() to receive the total fees to pay for using CCIP. Internally, the Router calls the OnRamp, which calls the Fee Quoter to get the fee.
   • The Sender approves the fee if the fee is not the native token.
   • The Sender calls the Router.ccipSend() function with the CCIP Message and the destination chain selector. For token transfers, the token amount to be transferred must be approved to the Router before this call is made.

2. Sending

   The Router receives the fee tokens and transfers them to the OnRamp:

   • The Router receives the tokens and transfers them to their corresponding Token Pools, which are retrieved from the Token Admin Registry. If the sender has not approved the tokens to the Router, the operation will fail.
   • The Router forwards the CCIP Message to the OnRamp for processing, which:
     • Validates the message by checking parameters, such as the number of tokens, gas limit, and data length.
     • Validates that the destination chain is not cursed.
     • For each token included in the Message, instructs the corresponding token pool to lock or burn the tokens, which also verifies the token pool rate limit for that lane.
   • A messageId is generated and returned to the Sender.
   • The OnRamp emits a CCIPMessageSent event containing the sequenced message. The Committing DON detects this event and processes the Message.

3. Initial Offchain Processing

   • The CCIP Commit DON monitors for the CCIPMessageSent event to process the Message offchain. More details about the offchain processing are available here.

Destination Blockchain

1. Commit Phase

   • The final OCR report from the Committing DON is recorded onchain in the OffRamp contract via the commit function. This OCR report may include a mix of blessed and non-blessed roots and price updates from multiple source chains.
   • If the OCR report includes blessed merkle roots from RMN-enabled source chains, the OffRamp verifies the RMN node signatures onchain via the RMNRemote contract.
   • The OffRamp also validates that all unblessed merkle roots originate from the source chains where RMN is disabled.
   • The OffRamp emits a CommitReportAccepted event, confirming that a valid commit has been accepted.

2. Secondary Offchain Processing

   • The CCIP Executing DON monitors for the CommitReportAccepted event to identify commit reports with pending executions. All messages associated with these commit reports are collected and a merkle proof is computed for every message ready for execution. The execution plugin considers each message's gas limits and calldata size during the batching process. Note that the message batch executed by the Executing DON may be a subset of a Committing DON batch. The computed merkle proof is then included in the Execute Plugin Report. More details regarding the offchain architecture are available here.

3. Execution Phase

   • When the execution plugin submits the report, the OffRamp verifies the merkle proofs against the stored merkle roots.

   • The OffRamp performs validations, including ensuring that the source chain is not cursed.

   • If the CCIP Message includes tokens, the OffRamp retrieves the relevant token pool from the Token Admin Registry and calls the Token Pool's releaseOrMint function. This function validates token pool rate limits, releases or mints the tokens, and transfers them to the specified receiver.

   • If the CCIP Message contains an arbitrary bytes payload, the OffRamp calls the Router to deliver the CCIP Message to the Receiver.

   • The OffRamp emits a final event, ExecutionStateChanged, containing the execution state. This state corresponds to one of the following numerical values:

     • 0: UNTOUCHED
     • 1: IN_PROGRESS
     • 2: SUCCESS
     • 3: FAILURE
